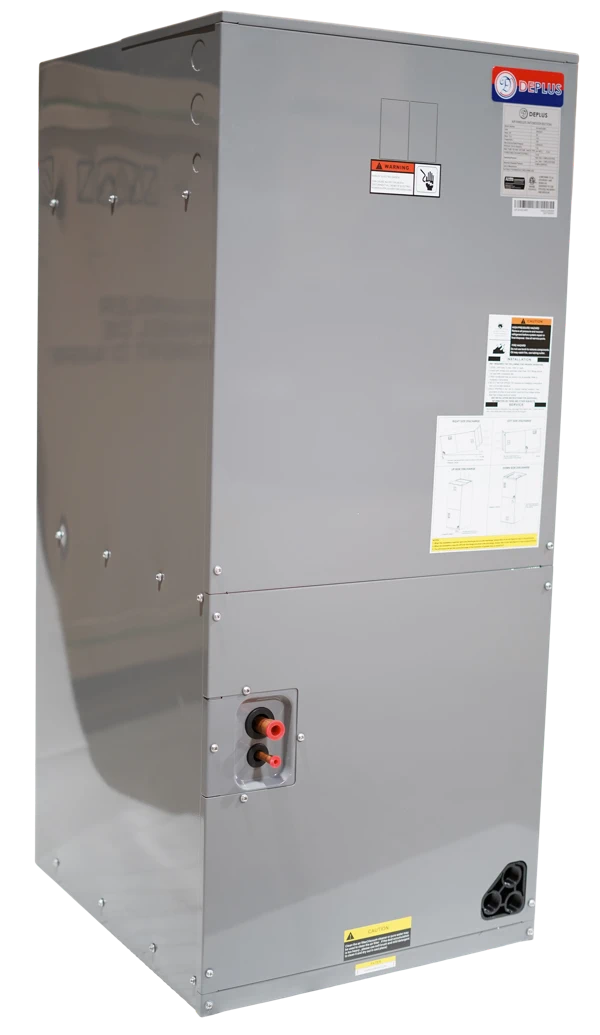

Air Handler
DP-AH42UMR4
DEPLUS MULTI POSITION AIR HANDLER 3.5 TON UP TO 14.3 SEER2 R454B
- Variable-speed ECM indoor blower motor
- Multi-position installation: upflow, downflow or horizontal
- Foil-faced insulation covers the interal casing to reduce cabinet condensation
- 5 kW-20 kW electric heater kits
- Tool-less filter access
Technical Specs
For detailed technical information, please refer to the listed specifications. You will find comprehensive data on cooling capacity, power requirements, dimensions, and other essential performance details to help you make an informed decision.
Want to compare models?
In our product brochure you will find the specifications for all our models
| Feature | DP-AH42UMR4 |
|---|---|
| Cooling Capacity (BTU/h) | 42K |
| Voltage-Phase | 208/230-1 |
| MCA (A) | 7.2A |
| MOP (A) | 10A |
| Dimension W" D" H" | 19-2/3 22 45-3/4 |
| Service Valve Liquid" Suction" | 3/8 3/4 |
| dBs1 | 54 |
| Ship Weight (lbs) | 143 |
| Loading Capacity 40HQ | 144 |
| Power Supply | 208-230V/1N/60Hz |
| MCA (V-Ph-HZ) | 7.2 |
| MOP (AMPS) | 10 |
| MOP (Type AMPS) | ECM |
| Motor Capacitor | / |
| Motor Rated HP (uF) | 3/4 |
| Motor Rated RPM | 1040 |
| Indoor Fan Diameter (r/min) | 11 |
| Indoor Fan Height (inch) | 11 |
| Indoor Coil Type | Φ7 mm inner grooved copper tube and hydrophilic aluminum fin |
| Indoor Air Flow | 1280 |
| Sound Pressure Level dB(A) | 54 |
| Regrigerant leakage sensor | Installed |
| Indoor Unit Dimension (WxHxD inch) | 19-2/3x45-3/4x22 |
| Indoor Unit Paking (WxHxD inch) | 22-5/6x47-5/8x25-3/5 |
| Indoor Unit Net / Gross Weight (lbs) | 132/143 |
| Regrigerant Control | Orifice |
| Refrigerant Connection Valve Liquid Side (inch) | 3/8 |
| Refrigerant Connection Valve Gas Side (inch) | 3/4 |
| Shipping per SDT40HQ | 144 |
