Air Conditioner
DP-AC42SMR4

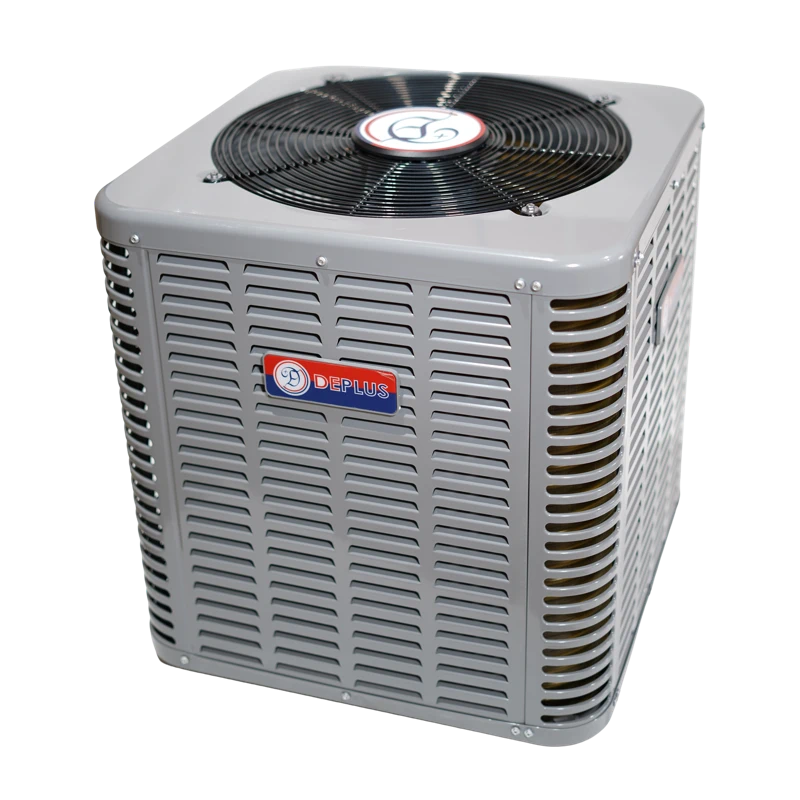

DEPLUS AIR CONDITIONER 3.5 TON UP TO 14.3 SEER2 R454B
- Energy-efficient compressor
- Refrigeration-grade premium 7mm copper tubing and aluminum fin condenser coil
- Specialized time-delay defrost technology
- Acoustically engineered sound control blanket for quiet operation
- Baked enamel finish protects the system from the elements
- Max. difference in level 65ft
- Max. refrigerant pipe length 150ft
- Cooling range from 54~126°F
- Heating range from 14~90°F
Technical Specs
For detailed technical information, please refer to the listed specifications. You will find comprehensive data on cooling capacity, power requirements, dimensions, and other essential performance details to help you make an informed decision.
Want to compare models?
In our product brochure you will find the specifications for all our models
| Feature | DP-42SMR4 |
|---|---|
| Cooling Capacity (BTU/h) | 42k |
| Voltage-Phase | 208/230-1 |
| MCA (A) | 30A |
| MOP (A) | 35A |
| Dimension W" D" H" | 30-3/10 30-3/10 34-4/5 |
| Service Valve Liquid" Suction" | 3/8 3/4 |
| dBs1 | 67 |
| Ship Weight (lbs) | 229 |
| Loading Capacity 40HQ | 135 |
| Power Supply | 208-230V/1N/60Hz |
| Minimum Circuit Amp. (A) | 29 |
| Max. overcurrent protection (A) | 34 |
| Cooling Capacity (Btu/h) | 40000 |
| Cooling SEER / EER (Btu/h. W) | 14.3 / 11.7 |
| Heating Capacity (Btu/h) | 42000 |
| Heating HSPF (Btu/h) | 7.50 |
| Compressor type / brand | Scroll |
| Fan Motor Type | PSC |
| Fan Motor Rated HP | 1/7 |
| Outdoor coil | Φ7 mm inner grooved copper tube and hydrophilic aluminum fin |
| Air Flow (CFM) | 3300 |
| Sound Pressure Level dB(A) | 67 |
| Dimension Unit(WxHxD) inch | 29-1/7X32-7/8X29-1/7 |
| Dimension Packing(WxHxD) inch | 30-3/10X34-4/5X30-3/10 |
| Refrigerant Control (lbs) | 204/214 |
| Refrigerant Connection Valve Liquid Side (inch) | 3/8 |
| Refrigerant Connection Valve Gas Side (inch) | 3/4 |
| Shipping per SDT40HQ | 135 |
